In order to ensure the purification effect, the smoke exhaust air volume is required to be calculated in strict accordance with the suction air speed of the exhaust hood in the actual design, and the suction air speed at the hood opening is generally not less than 0.5m/s. The minimum exhaust air volume is generally calculated by the following formula: L=2000PH

式中：

Where:

L—排風罩排風量，m3/h；

L - exhaust volume of exhaust hood, m3/h;

P—罩口的周長（靠墻的邊不計），m；

P - perimeter of the hood (excluding the side against the wall), m;

H—罩口灶口的距離，m。

H - distance from hood opening to stove opening, m.

用上述公式計算出排風量后再按罩口面積核算罩口吸風速度，保證罩口吸風速度不低于0.5m/s。

After calculating the exhaust air volume with the above formula, calculate the air suction speed at the hood according to the hood area to ensure that the air suction speed at the hood is not less than 0.5m/s.

在實際工程設計中，往往采用估計的方法，根據《民用建筑暖通空調設計技術措施》中對廚房通風量的規定，廚房通風量也可按如下?lián)Q氣次數確定：

In actual engineering design, estimation method is often used. According to the regulations on kitchen ventilation in Technical Measures for HVAC Design of Civil Buildings, kitchen ventilation can also be determined according to the following ventilation times:

中餐廚房：L=40-50（次/h）；

Chinese kitchen: L=40-50 (times/h);

西餐廚房：L=30-40（次/h）；

Western food kitchen: L=30-40 (times/h);

職工餐廳：L=25-35（次/h）。

Staff canteen: L=25-35 (times/h).

由于廚房所在建筑物的格局以及廚房在建筑物中位置不同，有條件的廚房應由建筑物的集中空調系統進行有序送風。但目前所遇到的大部分情況是建筑物沒有設置廚房的送風系統。許多帶餐廳、廚房等的建筑物，僅設計了集中采暖系統而無集中空調系統。當廚房處于工作狀態時，排風系統投入運行，廚房?jī)?nèi)處于負壓狀態，新風來源包括室外新風滲透和餐廳的空氣大量補入廚房。

As the layout of the building where the kitchen is located and the position of the kitchen in the building are different, conditional kitchens should be supplied with air orderly by the central air conditioning system of the building. However, most of the situations encountered at present are that the building does not have a kitchen air supply system. Many buildings with restaurants, kitchens, etc. are only designed with centralized heating system and no centralized air-conditioning system. When the kitchen is in working state, the exhaust system is put into operation, and the kitchen is in negative pressure state. The source of fresh air includes outdoor fresh air infiltration and a large amount of air in the dining room.

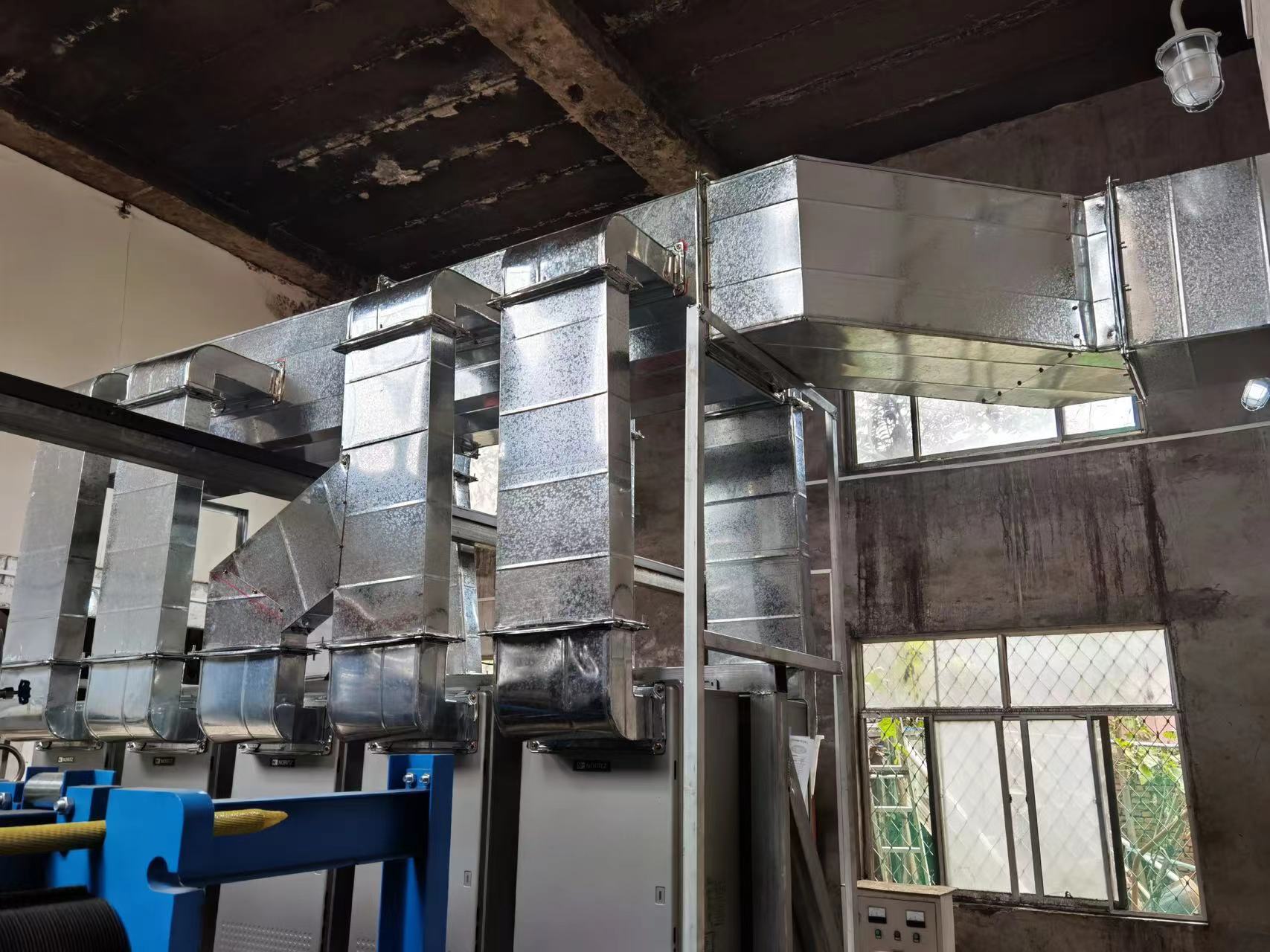

廚房排煙管道的水平段不宜太長，一般水平更遠距離不應超過15m并且要有2%以上的坡度，水平末端設活接頭，以方便清理油垢。排風速度按規范不得低于10m/s，以防風速過低使油附著于煙道上，接排風罩的支管應設風量調節閥。

The horizontal section of the kitchen smoke exhaust pipe should not be too long. Generally, the maximum horizontal distance should not exceed 15m and should have a slope of more than 2%. A movable joint should be set at the horizontal end to facilitate the cleaning of oil dirt. The air exhaust speed shall not be less than 10m/s according to the specification to prevent oil from adhering to the flue due to low wind speed. The branch pipe connected to the exhaust hood shall be equipped with an air volume regulating valve.
